STANDARD CAPACITORS FILM
MPP and MPET Specification
| TECHNICAL DATA AND SPECIFICATION | |||||
|---|---|---|---|---|---|
| TYPE | NORMAL | RAMP | SERIES | PATTERN | UNIT |

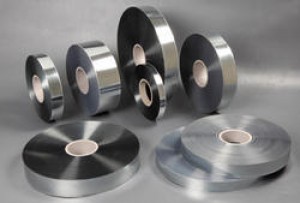

| PRODUCT PHOTO |  |
 |
 |
 |
|
| ELECTRICAL | |||||
| METALLIZATION | Pure Al, Alloy of Al and Zn | ||||
| RESISTIVITY(ACTIVE AREA) | 5-10 | 2-25 | 5-10 | 8-10 | Ω/⧠ |
| RESISTIVITY(HEAVY EDGE) | 2-3.4 | 2-3.4 | 2-3.4 | 2-3.4 | Ω/⧠ |
| FREE MARGIN | 1,1.5 and 2.5 | mm | |||
| SLIT WIDTH | 4..150 | mm | |||
| CONSTRUCTION | |||||
| CORE ID | 75.5 | mm | |||
| OUTER DIAMETER | 220..320 | mm | |||
| SPLICES | Max 2 per pan | nos. | |||
| TAPERED ON REEL | Max 0.8 | mm | |||
| CLIMATE CONDITION | |||||
| HUMIDITY | 45 | %RH | |||
| SAFETY | |||||
| SHELF LIFE | 6 MONTHS | ||||
| NOTE | |||||
| ON REQUEST, METALLIZATION ACCORDING TO CUSTOMER SPECIFICATION ALSO AVAILABLE | |||||
