POWER CAPACITORS
Features
- Self-healing property
- Low Energy consumption
- Modular Construction
- Discharge resistor
- High temperature Capability
- Inductor coils
- Compact in size
Typical application
For heavy-duty industrial loads and power factor improvement.
POWER FACTOR : CPPR1S2
| TECHNICAL DATA AND SPECIFICATION | ||||
|---|---|---|---|---|
| TYPE | CYLINDRICAL | BOX TYPE | ||
| GRADE | Normal Duty, Heavy Duty (HD), Super Heavy Duty (SHD) | |||

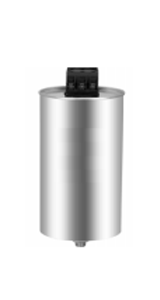

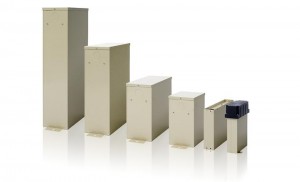

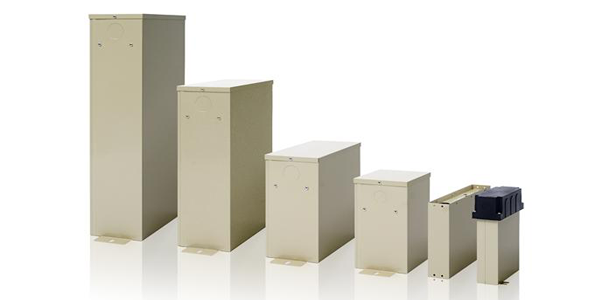

| PRODUCT PHOTO |  |
 |
||
| ELECTRICAL RATING | ||||
| RATED VOLTAGE U N | Three Phase -415 / 440 | Single Phase - 230 / 250 / 415 / 440, Three Phase - 415 / 440 | V AC | |
| RATED kvar QN | 1 to 25 | kvar | ||
| RATED FREQUENCY F N | 50/60 | Hz | ||
| OUTPUT CAPACITANCE | Within -5% to +10% Rated Value | % | ||
| VOLTAGE BETWEEN TERMINALS | 1.75 X UN(2 Sec) | V | ||
| VOLTAGE BETWEEN TERMINAL AND CONTAINER | 3 KV AC ( 10 Sec ) | V | ||
| INSULATION RESISTANCE | 50 Mega Ohm (Minimum) at 500 VDC Bet'n Terminal & Container | Mega Ohm | ||
| SEALING TEST | At 80 0 +/- 5 0C for 2 Hours | |||
| ENCAPSULANT | ||||
| FILLING | DRY | JELLY PU | OIL | |
| REF STANDARDS | IS 13340:1993 | |||
| GUARANTEE | ||||
| GUARANTEE | 18 Month from the date of supply or 12 Month from the date of commisionining against manufacturing defect | |||
| MOUNTING | ||||
| According to customer's requirement | ||||
| APPROVALS | ||||
| According to customer's requirement | ||||
